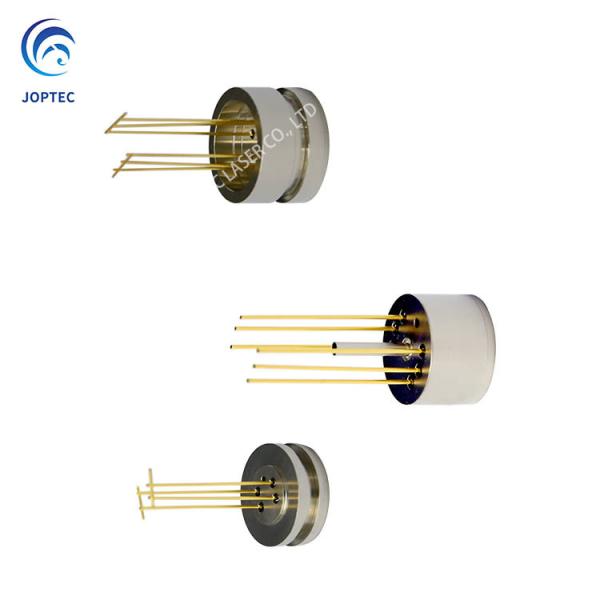

Product name: Pressure sensor package

Applications: hydraulic systems, security control systems, drilling monitoring systems and water conservancy, railways, intelligent buildings, automatic control, petrochemical, electric power and other fields.


Product features: using stainless steel or 4J29 and other substrates, glass or ceramic sealing, to meet customer requirements for laser welding, argon arc welding, etc., the surface is nickel-plated or gold-plated or the substrate is not plated, and the lead is gold-plated. It has the characteristics of high pressure resistance, hermeticity and high reliability.


Technical characteristics:

pressure resistance ＞100MPa

Temperature resistance ＞400℃

Hermeticity: ≤1x10^-3Pa.cm³/s (He)

Plating: Ni/Au/Substrate without plating

Reliability: Meets MIL-883 requirements

Founded in 1988 in Hefei, JOPTEC is a global leader in R&D and manufacturing of hermetic metal-glass packages for hybrid integrated circuits, high power laser, optical communication, infrared detector and other optoelectronic devices. With the continuous investment in new technologies and facilities, JOPTEC now covers an area of 21,000 square meters and has developed a complete and mature process for the design, manufacturing, testing and quality inspection for hermetic metal-glass packages. Over the past few decades, JOPTEC’s capability, quality consistency and reliability have been recognized by customers worldwide that range from major international companies of high power laser, optical communication, defense and aerospace agencies to medical and research establishments.
