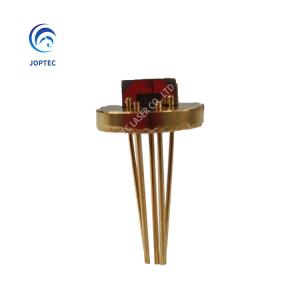

    65Ghz DC Feedhrough TO56 Transistor Outline Package

    Ask Lasest Price
    Brand Name : JOPTEC
    Payment Terms : T/T
    Supply Ability : 5000000 PCS/Month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

    65Ghz DC Feedhrough TO56 Transistor Outline Package

    Product NameTO56 With DC Feedhrough 65Ghz Frequency And Aluminum Nitride
    Product ModelTO56
    Product FormationMaterialQuantity
    1. BaseSPCC1
    2. Pin4J504
    3. Glass insulatorCoining70724
    4. Pin24J501
    5. Brazing ringHlAgCu281
    6. Ceramic baseAluminum Nitride1
    Insulation Resistance500V DC resistance between single pin and base is ≥1*1010Ω
    HermeticityLeak rate is ≤1*10-3Pa.cm3/s
    Product Features1. Fiber optic packages have different structures include optical port ;
    2. The material of housing are different and are adopted by different features of packages.
    3. The sections of pin are rectangular or cyclinder.
    4. The pin cross bottom or sidewall which can be designed according to customers' needs.
    5. The position of ground lead can be designed according to customers' needs.
    6. The design of lid fits the dimension of package.
    7. Customers could choose fully plating or selective plating.
    8. All index of parameter conform to requirement of GJB548
